Drawing-Based CNC Service

Custom CNC Metal Parts

Send drawings, materials, tolerances and target volume for motor housings, end covers, shafts, brackets and other machined metal structural components.

Get Free QuoteProduct Center

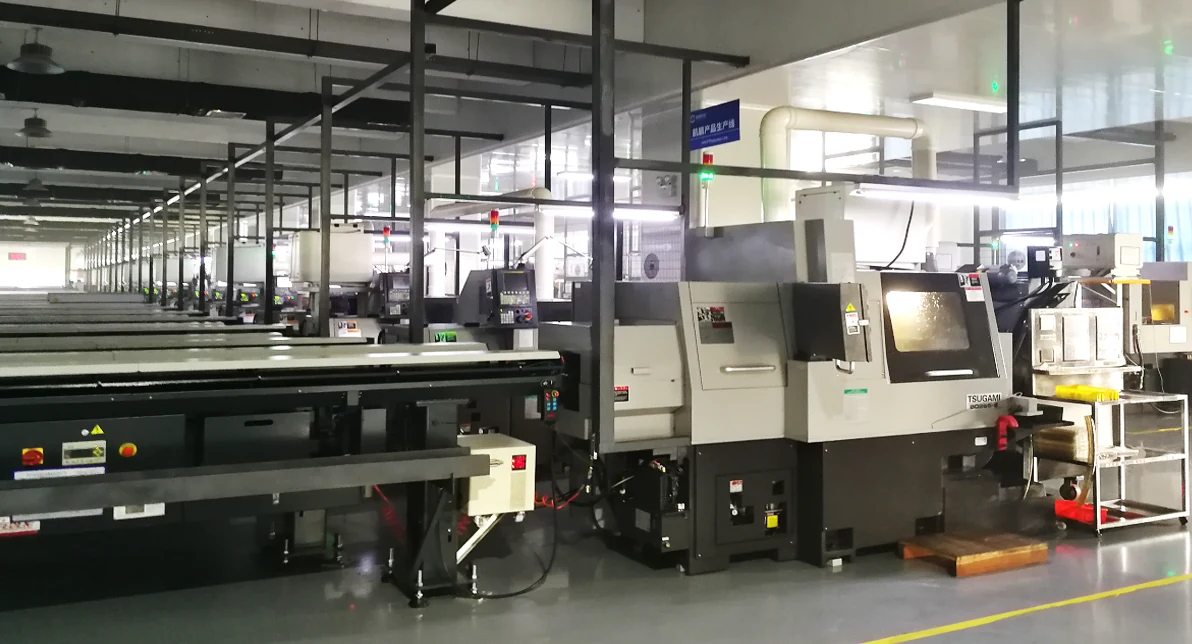

Weko precision metal manufacturing capability
500+CNC Machines
Why Choose Us

Built Around Precision Metal Structures

We review manufacturability from the drawing stage, confirm the CNC route and support prototypes or batch production for aluminum and stainless-steel structural parts.

Drawing Review

Confirm material, tolerance, surface finish, machining route and controlled-module boundaries before quotation.

Prototype Sampling

Sample machining and inspection feedback help validate structure before batch production.

Focused Supply Scope

We do not export finished drone motors or other controlled power modules. We only supply metal structural components made by aluminum or stainless-steel machining; our scope excludes bearings, magnetic cores, PCBs, outsourced purchased parts, complete machine assembly, and complete product design or R&D.

Equipment Capacity

Precision Manufacturing Equipment

Core CNC turning, machining center, grinding and automatic lathe capacity for drawing-based metal components.

EquipmentSpecManufacturerQtyWorking RangeAccuracy
CNC Swiss-Type LatheSB-20R / BO205 / 32Star / Japan Tsugami150
  • Max. length: 400 mm
  • Max. outer diameter: 32 mm
±0.002 mm
CNC Swiss-Type LatheHe Long HL-36 / 46He Long120
  • Max. length: 100 mm
  • Max. outer diameter: 120 mm
±0.002 mm
CNC Machining CenterTC-S2DNZ / FRD@-D14MINQiaofeng / Brother / FANUC230
  • X axis: 500 mm
  • Y axis: 400 mm
  • Z axis: 300 mm
±0.002 mm
Centerless Grinding Machine24B6SLDa Guang / Rong Guang16
  • Max. length: 80 mm
  • Max. outer diameter: 30 mm
±0.0001 mm
Automatic Lathe1215Ming Yang / Taiwan90
  • X axis: 500 mm
  • Y axis: 300 mm
±0.005 mm
Machining Support

Surface Treatment Options

Choose a practical finish for CNC-machined aluminum or stainless-steel motor structural parts

Anodizing

Color or clear anodizing for aluminum housings, covers and brackets.

Passivation

Stainless-steel passivation support for corrosion resistance requirements.

Sandblasting

Controlled matte surface preparation before anodizing or final inspection.

Deburring & Inspection

Edge finishing and dimensional inspection for machined metal components.

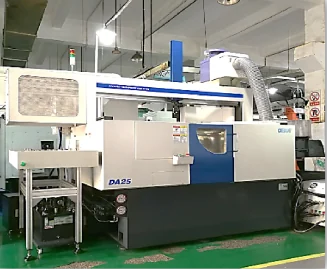

CNC sliding head machine

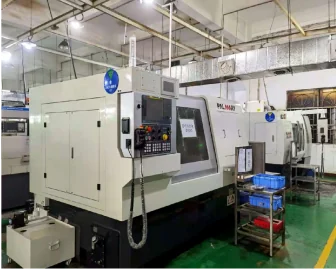

CNC machining center

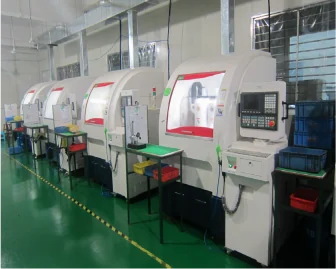

Automated CNC equipment line

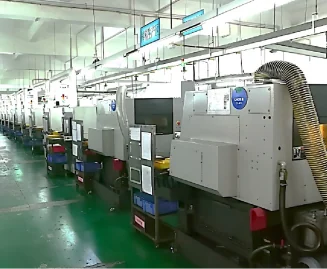

Precision CNC production equipment

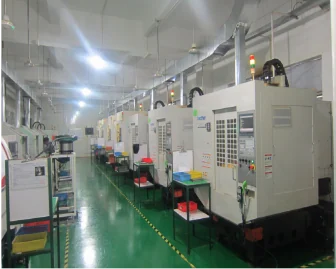

CNC workshop production line

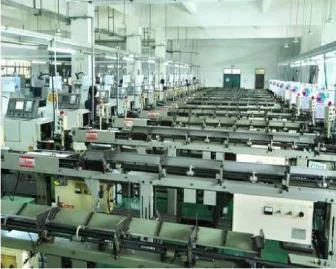

Automated machining workshop
加工支持

Manufacturing Capabilities & Equipment

为 CNC 加工铝合金或不锈钢电机结构件提供稳定的设备与制程支持

精密车削加工

数控走心机、走刀机及自动车床，支持细长轴类、壳体支架的高精度车削加工。

多轴铣削加工

CNC 加工中心支持壳体、端盖和复杂轮廓件的多轴铣削加工。

磨削与成型加工

数控无芯磨床实现外圆精密磨削，冷墩设备完成金属零件的冷态高速成型。

清洗与表面处理

超声波自动清洗线去除油污与切屑，为后续检测或表面处理提供洁净工件。

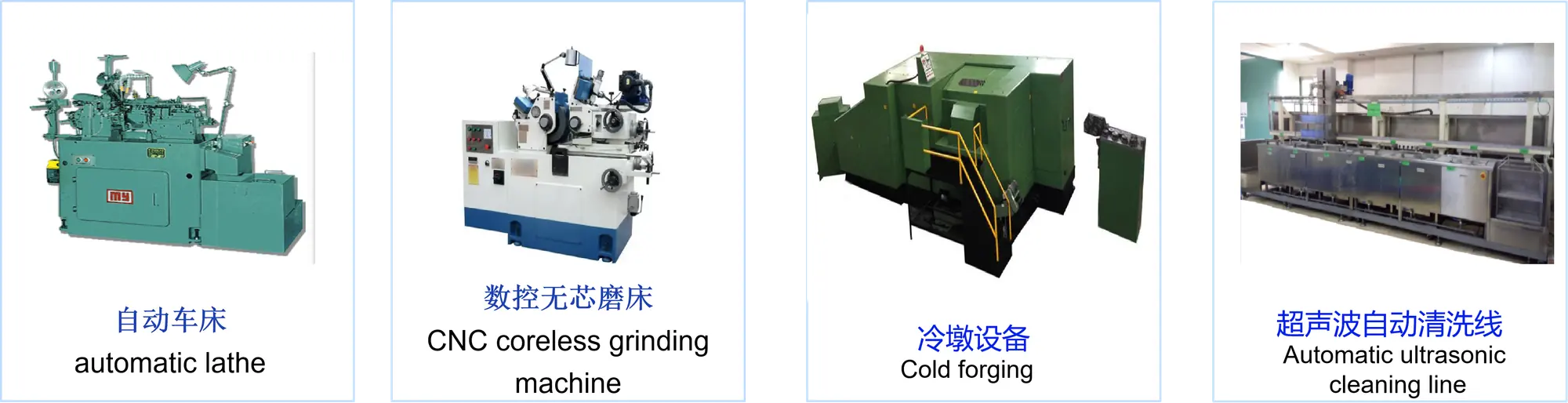

Automatic lathe, CNC coreless grinding, cold forging and ultrasonic cleaning equipment

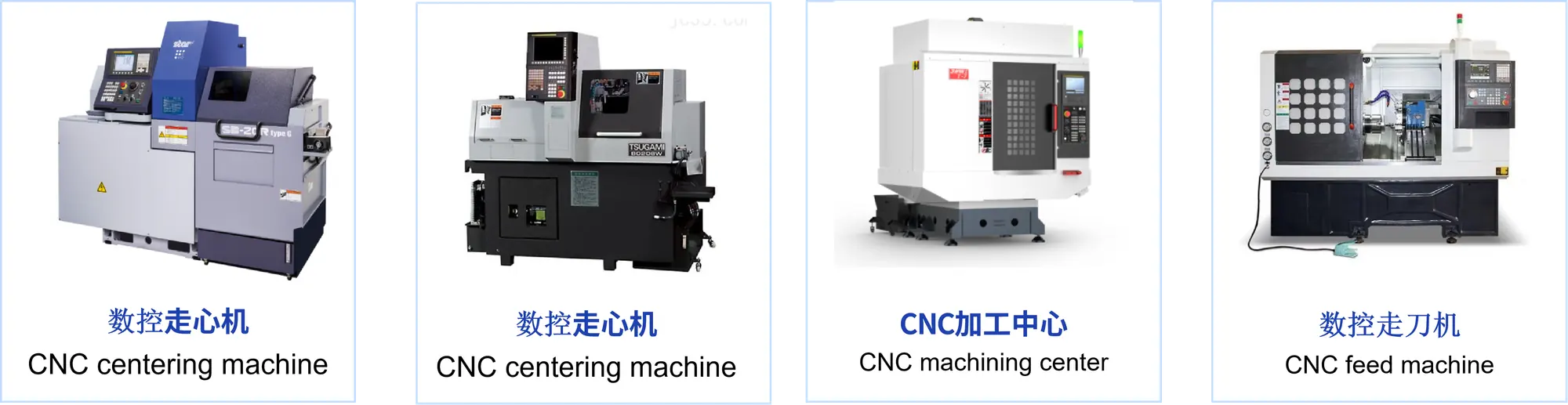

CNC centering machines, CNC machining center and CNC feeding equipment
检测支持

质量检测选项

为 CNC 加工全流程提供全维度、高精度的质量检测

几何精度检测

三坐标、轮廓度、圆度、气动及粗糙度测量仪，覆盖尺寸形位公差与表面质量全维度检测。

材料成分分析

光谱仪分析元素成分，硬度仪测表面硬度，RoHS 验证有害物质环保合规。

外观缺陷检测

CCD 影像筛选机自动识别划痕、裂纹、毛刺等缺陷，实现批量高速全检分选。

环境耐久测试

盐雾、UV 老化及恒温恒湿测试，验证涂层防锈、材料耐候及极端环境可靠性。

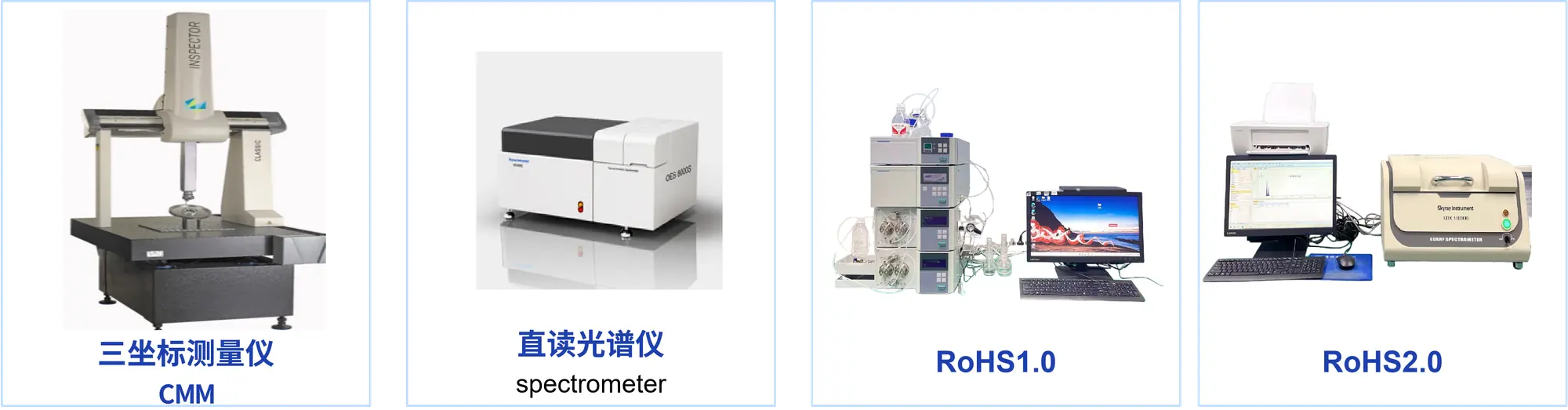

CMM, spectrometer and RoHS inspection equipment
品质支持

品质管控设备

为 CNC 加工配备行业一流的检测设备，实现从原材料入厂检验、生产过程控制到成品出厂的全维度、高精度的质量检测，确保每一件交付产品的卓越品质。

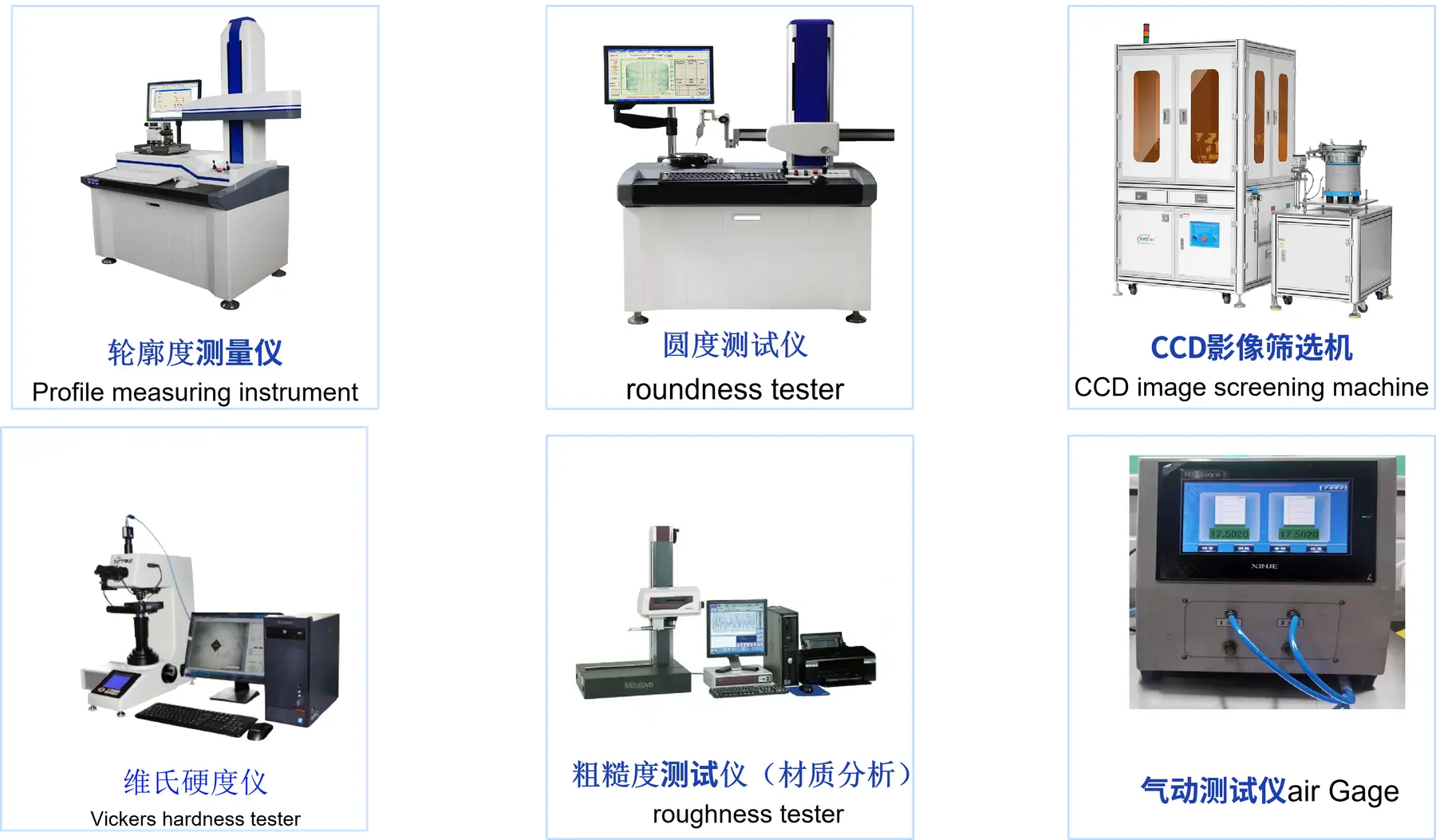

Profile measuring instrument, roundness tester, CCD screening machine, hardness tester, roughness tester and air gage

Ready to Quote Your Metal Component?

Send drawings or specifications and our team will review CNC feasibility, materials and lead time.

Drawing Review
Prototype Support
Batch CNC Capacity

Request a Quote
