Start with the assembly reference.
Identify the bore fits and functional faces. Define the datums, dimensions and relationships required by the mating components.
01 / 02UAV / MACHINED STRUCTURAL PARTS
COMPONENT REFERENCEES-DR-001

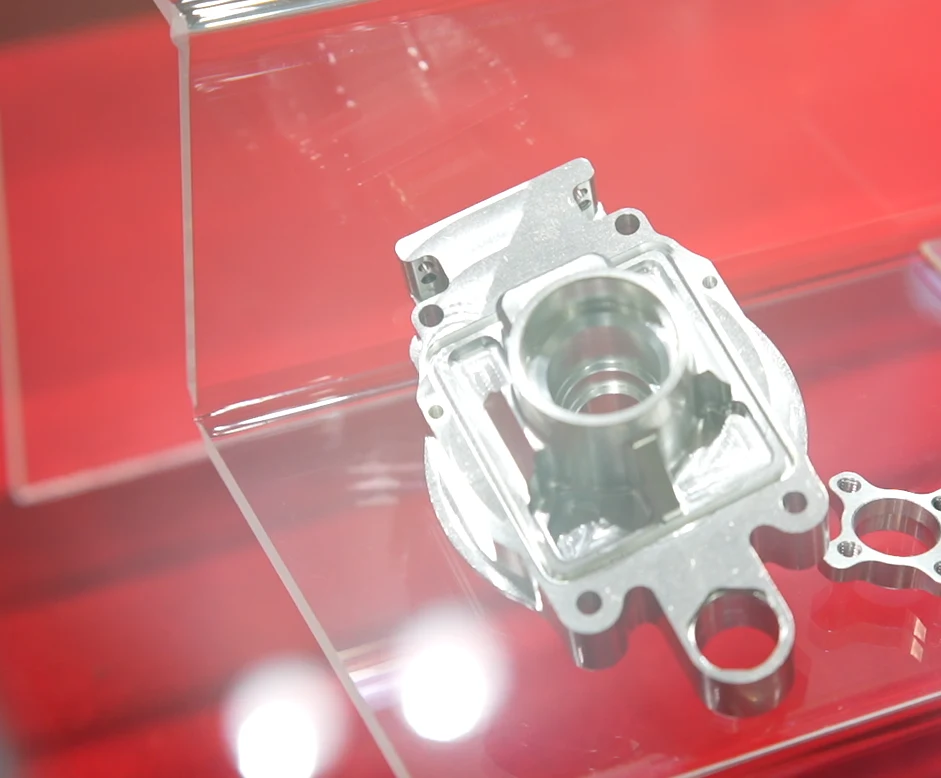

Drone Motor End Cover
Lightweight CNC machined end cover for UAV power motor structural assemblies.
- Material
- Aluminum alloy
- Geometry
- Custom by motor drawing
- Order quantity
- 100 pcs Listed reference · discuss your quantity
Prototype and batch quantity are confirmed after drawing review.
THE COMPONENT / THE REQUIREMENT
Built around the interfaces that matter.
Connect bores, mounting features and finished faces to the same reference. Bring the complete geometry into the drawing review.
Explore CNC machiningTechnical reference
ES-DR-001- Material reference
- Aluminum alloy
- Size / geometry
- Custom by motor drawing
- Surface options
- Defined by drawing and application
- Listed order quantity
- 100 pcs
- Process
- CNC turning, milling and secondary machining
- Inspection
- Drawing-based dimensional review
The product record introduces available options. Your drawing and quotation define the supplied alloy, dimensions, finish and acceptance requirements.
CUSTOM COMPONENT MANUFACTURING
Aluminum motor cover/end cap for drone power motor structural use. Supplied as a machined metal part only, without magnets, bearings, PCB, winding or complete motor assembly.
Component supply · Scope confirmed in your quotation
ENGINEER THE CONVERSATION / A BETTER RFQ
The details worth
getting right.
Use these review points with your drawing. No assumed tolerances or dimensions—only the requirements your component needs.
Make every feature accessible.
Show the hole pattern, pocket geometry, internal radii and wall sections. Review tool access and the sequence around the finished part.
Define the final interface.
Specify treatments, protected areas and final dimensions. Agree the inspection evidence required to approve the finished component.

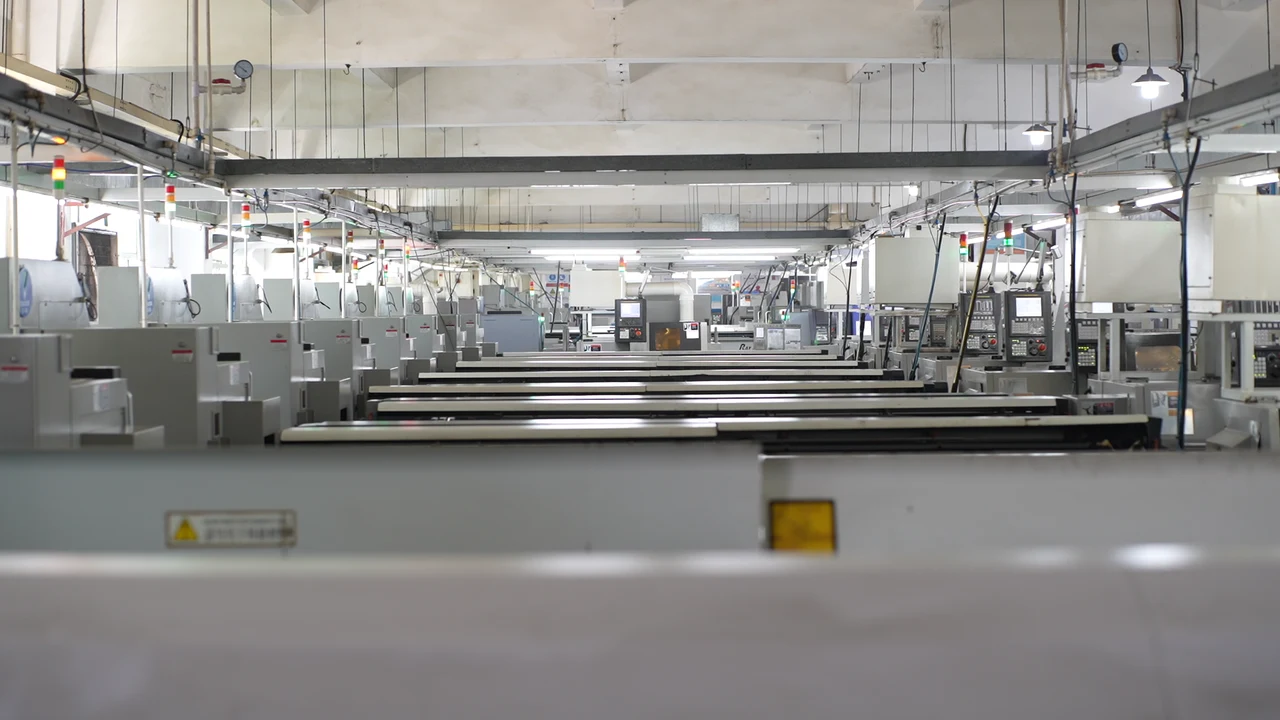

INSIDE MANUFACTURING / REAL PROCESS PHOTOGRAPHS
From the cut
to the check.
Explore real manufacturing and inspection references. Define the route, critical features and documentation for your own part before production.
CNC MACHINING / CONNECTED OPERATIONS
One component. A connected route.
Turning, milling and inspection work from the same finished-part requirements.
WEKO / TURNED BODY → MILLED FEATURES → INSPECTION
ILLUSTRATIVE PROCESS STUDY / YOUR DRAWING DEFINES THE REQUIREMENTS
Establish the body and its reference.
Define the rotational diameters, bore, shoulders and functional lengths. Identify the datums that later operations and inspection must reference.
Review the turned featuresConnect every feature to the same component.
Show milled flats, pockets, mounting holes and cross features. Dimension their relationships to the functional datums, with tool access and final finish in mind.
Review the milled interfacesCheck the finished part, not isolated operations.

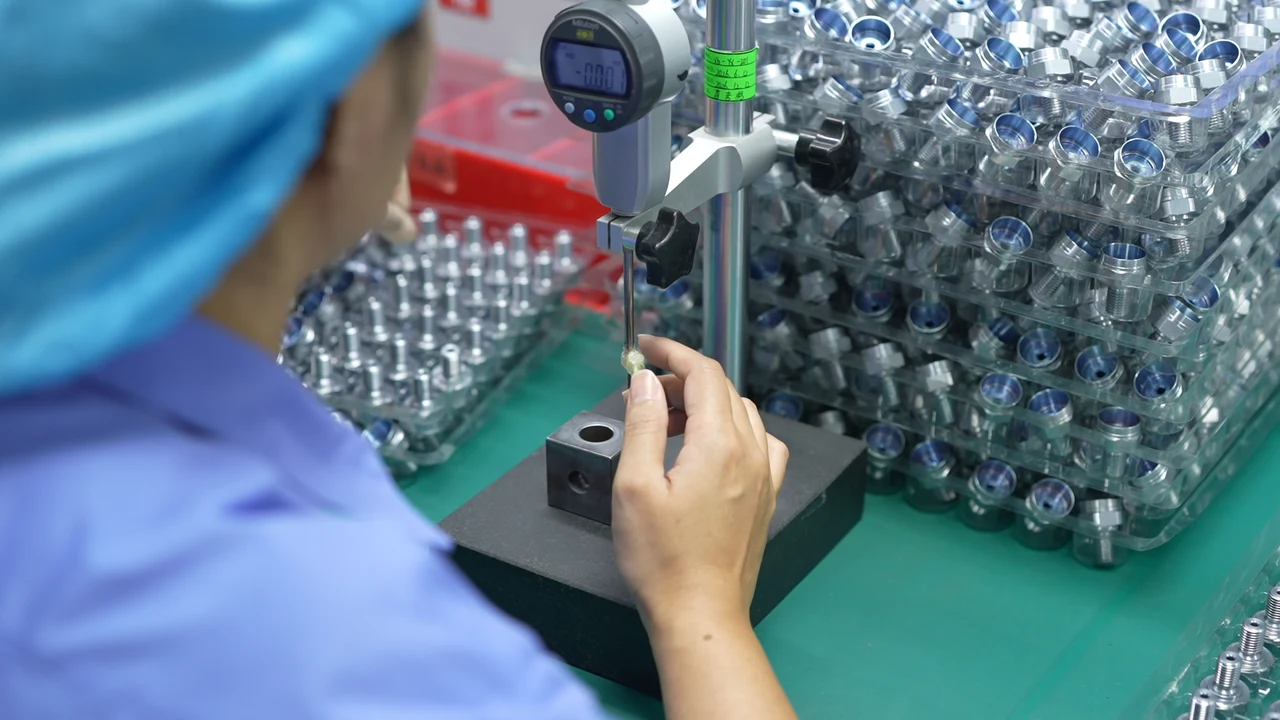

Specify which dimensions, form controls and surface requirements decide acceptance. Agree the measurement methods and the condition after finishing.
Plan your complete CNC partYOUR COMPONENT / YOUR NEXT STEP
Make the drawing
the starting point.
Tell us what you need for Drone Motor End Cover, or share a similar custom component. Include the quantity and the features that matter.
- 01
Current drawing or model
Add the revision, mating interfaces and any critical features.
- 02
Material, finish and quantity
State the alloy and treatment you need, plus initial and repeat quantities.
- 03
Timing and inspection
Include your target date and any reports needed for approval.
Useful answers.
Before the quote.
Can this reference be customized?+
Yes. Share the actual geometry, material, quantity and finished condition you need. The quotation defines the manufacturing scope; a reference image is not an approved production drawing.
Can I request a different sample or batch quantity?+
The current record lists 100 pieces. Prototype and batch quantity are confirmed after drawing review. State your sample quantity and expected repeat demand so the appropriate route can be reviewed.
Does this include a complete motor or assembly?+
This offer concerns custom metal components. Complete motors, electronics, bearings and complete machine assemblies are not included in this component reference. Confirm the required component scope in your RFQ.
What should I send for a quotation?+
Send the current drawing or model, alloy, finish, quantity and timing. Mark critical dimensions and requested inspection records. An NDA can be discussed before confidential files are exchanged.
